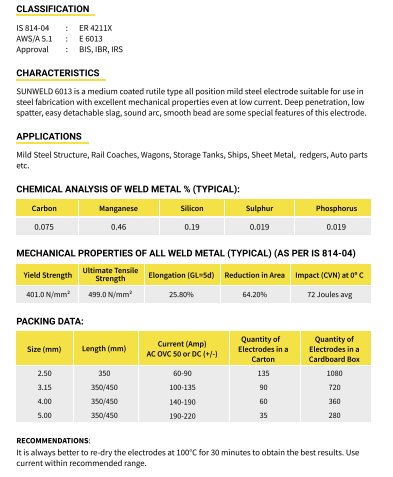

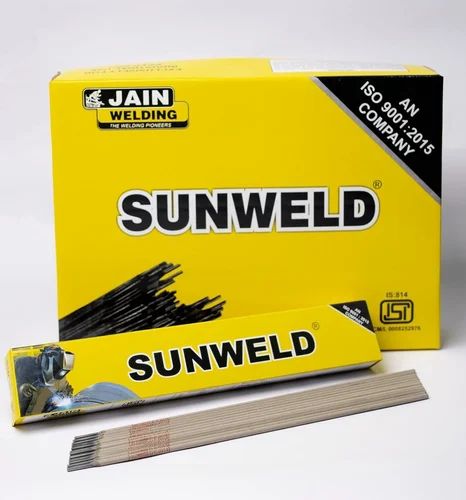

SUNWELD 6013 (14″ – 10 no.) Mild Steel Electrode 3.15×350

Characteristics

SUNWELD 6013 is a medium coated rutile type all position mild steel electrode suitable for use in
steel fabrication with excellent mechanical properties even at low current. Deep penetration, low
spatter, easy detachable slag, sound arc, smooth bead are some special features of this electrode.
Applications
Mild Steel Structure, Rail Coaches, Wagons, Storage Tanks, Ships, Sheet Metal, redgers, Auto parts
etc.
CHEMICAL ANALYSIS OF WELD METAL % (TYPICAL):
Carbon Manganese Silicon Sulphur Phosphorus
0.075 0.46 0.19 0.019 0.019
MECHANICAL PROPERTIES OF ALL WELD METAL (TYPICAL) (As per IS 814-04)
Yield Strength Ultimate Tensile

Strength Elongation (GL=5d) Reduction in Area Impact (CVN) at 0o C
401.0 N/mm2 499.0 N/mm2 25.80% 64.20% 72 Joules avg
C
